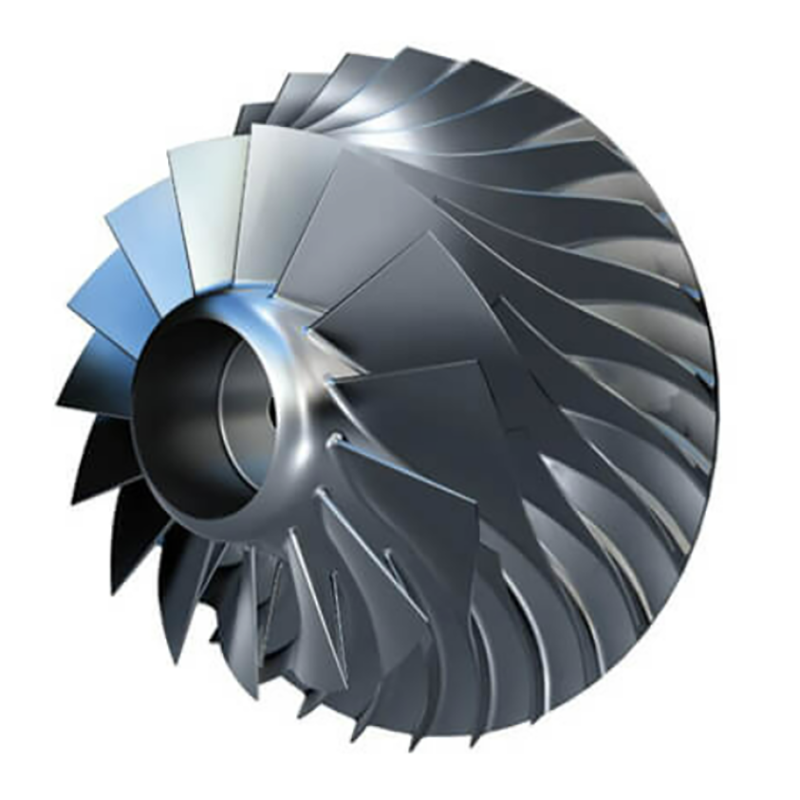

Fusheng-Elliott Centrifugal Compressor Parts
PRODUCT CATEGORIES
CONTACT SMK
- Mobile：+86 18717807449
- WhatsApp：+86 18717807449
- Email：lewis@smktek.com
| PART NAME | PART NO. | PART NO. |
| Oil Filter Element (Single) | P3516C160-3 | |
| Oil Filter Element (Duplex) | JP0447-10 | |
| Sealing Compound | X-598-010 | |
| O-Ring Seal Housing | P700D042 | |
| Inlet Air Filter PrImary Element (Non-Sound Enclosure Units) | LP1068-1 | |
| Inlet Air Filter Secondary Element (Non-Sound Enclosure Units) | LP1069-1 | |
| Inlet Air Filter Element (Sound Enclosure Units) | UP1701-50 | |
| Oil Mist Eliminator Filter | P3515A958 | |
| Discharge Muffler | TP3238-1 | |
| Bullgear Journal Bearing | DP1087-6 | |
| Shim Pack Bullgear Bearing | 280002-GR1 | |
| Bullgear Shaft Oil Seal (Whole) | JP0648-50 | |
| Bullgear Shaft Oil Seal O-Ring (Viton 2.75 Dia x 1/8) | P700D232 | |
| Pinion Bearing (Active 1st Stg) | TP0908-1 | |
| Pinion Bearing (Active 2nd Stg) – 3 Stage | TP0909-1 | |
| Pinion Bearing (Active 2nd Stg) – 2 Stage | TP0908-1 | |
| Pinion Bearing (Inactive 3rd & Free End) | BP0568-1 | |
| Pinion Bearing Shim Pkg Kit (Primary) | CP0007-GR1 | |
| Pinion Bearing Shim Pkg Kit (Secondary) | CP0008-GR1 | |
| Carbon Seal Assembly | FP0559-8 | |
| Carbon Seal Repair Kit | EP1144-GR1 | |
| Diffuser O-Ring 1st Stage | P99R182 | |
| Diffuser O-Ring 2nd Stage | P99R181 | |
| Diffuser O-Ring 3rd Stage | P99R180 | |
| Top Half Gearcase / Scroll O-Ring | G496-030 | |
| Splitline O-Ring Groove | G496-030 | |
| Intercooler Bundle Gasket Pkg | PP0576-GR1 | |
| Aftercooler Bundle Gasket Pkg | PP0577-GR1 | |
| Intercooler Head Gasket | JP0495-1 | |
| Aftercooler Head Gasket | JP0496-1 | |
| Oil Cooler Gasket Package | QP0475-500 | |
| Interstage Pipe Coupling Gasket (3″) | P2320C803 | |
| Interstage Pipe Coupling Gasket (4″) | P2320C805 | |
| Interstage Pipe Coupling Whole Gasket (5″) | P2320C073 | |
| Interstage Pipe Coupling Split Gasket Assembly (5″) | NP0490-10 | |
| Interstage Pipe Coupling Split Gasket (5″) | NP0490-20 | |
| Main Oil Pump | P7210T1030 | |
| Main Oil Pump Repair Kit | P7210T1030-GR1 | |
| Auxiliary Oil Pump | KP0801-X, PER S.O. | |
| Aux Oil Pump Repair Kit | P7210T1025-GR1 | |
| Oil Cooler | PER S.O. | |
| Intercooler Tube Bundle | PER S.O. | |
| Aftercooler Bundle | PER S.O. | |
| Main Oil Pump Coupling | P2320J114 | |
| Inlet Control Valve (Pneumatic, wth I/P Trans.) – Standard | NA | FP0333-1 |
| Inlet Control Valve (Pneumatic, wthout I/P Trans.) – Standard | TP0430-1 | NA |
| Inlet Control Valve (Electric, without Transformer) – Optional | NP1704-1 | NP1704-1 |
| Inlet Control Valve (Electric, with Transformer) – Special for Juction Box | NP1705-1 | NP1705-1 |
| Unloading Control Valve ((Pneumatic, with I/P Trans.) 3-Stg – Standard | NA | PP1689-1 |
| Unloading Control Valve ((Pneumatic, without I/P Trans.) 3-Stg – Standard | PP1689-2 | NA |
| Unloading Control Valve ((Electric, without Trans.) 3-Stg – Optional | NP1706-1 | NP1706-1 |
| Unloading Control Valve (Electric, with Trans.) 3-Stg – Special for Junct. Box | NP1707-1 | NP1707-1 |
| Unloading Control Valve ((Pneumatic, with I/P Trans.) 2-Stg – Standard | NA | PP1429-1 |
| Unloading Control Valve ((Pneumatic, without I/P Trans.) 2-Stg – Standard | PP1429-2 | NA |
| Unloading Control Valve ((Electric, without Trans.) 2-Stg – Optional | NP1855-1 | NP1855-1 |
| Unloading Control Valve (Electric, with Trans.) 2-Stg – Special for Junc. Box | NP1856-1 | NP1856-1 |
| Oil Reservoir Heater / Level Switch (Optional) | PER S.O. | |
| Coupling Replacement Sleeve | GP0210-50 | |
| Discharge Check Valve – 3 Stage | PER S.O. | |
| Discharge Check Valve – 2 Stage | PER S.O. | |
| Thermostatic Mixing Valve | P9100T125 | |
| Thermostatic Mixing Valve (Service Kit) | P9100T115-1 | |
| Thermostatic Mixing Valve (Element Assy) | P9100T115-2 | |
| V-Notch Drain Valve | P61E047 | |
| Drain Trap (Pulsar) | LP1511-1 | |
| Drain Trap (Pulsar) – Annual Replacement Kit | LP1511-30 | |
| Condensate Drain Muffler | 270702-5 | |
| Oil Regulating Valve | 280018-1 | |
| Vibration Transmitter (LVT HVT) | KP1955-1 | KP1955-1 |
| Vibration Cable (LVT HVT) | P7964A4608-00 | P7964A4608-00 |
| Vibration Probe (LVT HVT) | P7964A4641-00 | P7964A4641-00 |
| Pressure Transmitter (FDT, SDT) | P8650A522 | KP1950-1 |
| Pressure Transmitter (OPT) | P8650A522 | KP1950-1 |
| Pressure Transmitter (DPT, SPT) | P8650A521 | KP1950-2 |
| Motor Amp Transmitter (MAT) | P/N FROM B/M | P/N FROM B/M |
| Control Relay (CR1) | P7480G7 | NP1874-1 |
| Control Relay (CR2, CR4, CR5) | NP1874-1 | NP1874-1 |
| Control Relay (CR3) | MP1171-1 | MP1171-1 |
| CPU Module | NA | KP1971-1 |
| Power Supply ( 24 VDC) | NA | KP1977-1 |
| Power Supply (48 VDC) | P90A106 | P90A106 |
| Analog Input / Output Module | NA | KP1974-1 |
| Analog Input Module | P90ES235 | KP1972-1 |
| RTD Input Module | NA | KP1973-1 |
| Operator Panel (6″ R150) | NA | MP0202-1 |
| Operator Panel (10″ R150 / 9″ R1000) | RP2504-3 | MP0028-1 |
| Micro Memory Card (6″) | NA | MP0923-2 |
| Micro Memory Card (10″) | NA | MP0214-2 |
| Temperature RTD Assembly (IAT) 3-Stage | UP1149-30 | LP0445-10 |
| Temperature RTD Assembly (IAT) 2-Stage | UP1149-30 | LP0445-12 |
| Temperature RTD Assembly (IOT) | UP1149-20 | LP0445-13 |
| Seal Air Pressure Switch | P8650A5403 | P8650A811 |
| I/P Transducer, 6-30 PSIG (UVT, IVT) – If supplied inside of control panel | P8651A311 | P8651A311 |
| I/P Transducer, 3-15 PSIG (IGV) – If supplied inside of control panel | P8651A301 | P8651A301 |
| Air Filter Delta P Switch (Optional) | P8335D685 | P8335D685 |
| Oil Filter Delta P Switch (Optional) | P8335E180 | P8335E180 |
| Horn | P8650A65 | NP0837-3 |
| Oil Filter Element (Single) | P3516C160-3 | |
| Oil Filter Element (Duplex) | JP0447-10 | |
| Sealing Compound | X-598-010 | |
| O-Ring, Seal Housing | P700D039 | |
| Inlet Air Filter Element – Primary | LP1068-1 | |
| Inlet Air Filter Element – Secondary | LP1069-1 | |
| Inlet Air Filter Element: Sound Enclosure Elements | UP1701-50 | |
| Oil Mist Eliminator Filter | P3515A958 | |
| Bullgear Journal Bearing | DP1087-6 | |
| Shim Pack, Bull Gear Bearings | 280002-GR1 | |
| Bullgear Shaft Oil Seal Assembly (Whole) | JP0648-50 | |
| Bullgear Shaft Oil Seal O-Ring (Viton 2.75 Dia x 1/8) | P700D232 | |
| Pinion Bearing (Active 1st Stg) – Standard | PP1535-1 | |
| Pinion Bearing (Active 2nd Stg) – 2 & 3 Stage Units | PP1535-1 | |
| Pinion Bearing (Inactive 3rd Stg) – Standard | PP1537-1 | |
| Pinion Bearing (Inactive Free End) – Standard | PP1537-1 | |
| Pinion Bearing Shim Pkg Kit | P835B3000 | |
| Carbon Seal Assembly (1st Stg) | P7963A3110 | |
| Carbon Seal Assembly (2nd and 3rd Stg) | P7963A3110 | |
| Carbon Seal Repair Kit (1st Stg) | P7963A3100-1 | |
| Carbon Seal Repair Kit (2nd and 3rd Stg) | P7963A3100-1 | |
| Shim Pack – Diffuser | 270688-GR1 | |
| Shim Pack – Casing | P835W152 | |
| Backplate O-Ring | P700D238 | |
| Gearcase Splitline O-Ring | G496-030 | |
| Locknut, Impeller R.H. | P14G152 | |
| Low Pressure Intercooler Bundle Gasket Pkg (3/8 Tubes, 6 Pass) | PP0174-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg (5/8 Tubes, 4 Pass) | PP0733-900 | |
| High Pressure Intercooler Bundle Gasket Pkg (3/8 Tubes, 6 Pass) | PP0174-900 | |
| High Pressure Intercooler Bundle Gasket Pkg (5/8 Tubes, 4 Pass) | PP0733-900 | |
| Aftercooler Bundle Gasket Pkg (3/8 Tubes, 4 Pass) | RP0548-900 | |
| Aftercooler Bundle Gasket Pkg (5/8 Tubes, 4 Pass) | Not Available | |
| LP Intercooler Head Gasket | DP0873-1 | |
| HP Intercooler Head Gasket | DP0873-1 | |
| Aftercooler Head Gasket | MP1850-1 | |
| Oil Cooler Gasket Package | RP0500-500 | |
| Inlet Gasket – 1st Stage (8 in) | P48W255 | |
| Interstage Pipe Coupling Gasket – 1st Stage Discharge (6 in) | P2320C075 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Inlet (5 in) | P2320C273 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Discharge (5 in) | P2320C073 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Inlet (5 in) | P2320C273 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Discharge (4 in) | P2320C805 | |
| Main Oil Pump | P7210T1082 | |
| Main Oil Pump Repair Kit | P7210T1090-1 | |
| Auxiliary Oil Pump | P/N FROM B/M | |
| Auxiliary Oil Pump Repair Kit | P7210T1025-GR1 | |
| Oil Cooler (Suitable for water up to 105 deg. F. See oil cooler drawing for glycol details.) | P/N FROM B/M | |
| LP Intercooler Tube Bundle | P/N FROM B/M | |
| HP Intercooler Tube Bundle | P/N FROM B/M | |
| Aftercooler Tube Bundle | P/N FROM B/M | |
| Main Oil Pump Coupling | P2320J092 | |
| Inlet Guide Vane Assembly (w/o actuator) – NOT CE | NP0379-60 | NP0379-60 |
| Inlet Guide Vane Assembly (w/o actuator) – CE SHROUD | NP0380-60 | NP0380-60 |
| Inlet Guide Vane Electric Actuator, without transformer | NA | NP0325-1 |
| Inlet Guide Vane Electric Actuator, with transformer | NP0326-1 | NP0326-1 |
| Inlet Guide Vane Pneumatic Actuator | QP0486-1 | QP0486-1 |
| Unloading Valve Assembly (2″ Full Port) – Electric Actuator without transformer | NA | RP2719-1 |
| Unloading Valve Assembly (2″ Full Port) – Electric Actuator with transformer | RP2718-1 | RP2718-1 |
| Unloading Valve Assembly (2″ Full Port) – Pneumatic Actuator / Positioner (without I/P) | RP2816-2 | NA |
| Unloading Valve Assembly (2″ Full Port) – Pneumatic Actuator / Positioner (with I/P) | NA | RP2816-1 |
| Unloading Valve Actuator, Electric without transformer | NP1469-50 | NP1469-50 |
| Unloading Valve Actuator, Electric with transformer | NP1472-50 | NP1472-50 |
| Unloading Valve Actuator, Pneumatic | RP2816-51 | RP2816-51 |
| Oil Reservoir Heater / Level Switch (Optional) | P/N FROM B/M | |
| Discharge Check Valve | P/N FROM B/M | |
| Thermostatic Mixing Valve | P9100E1001 | |
| Thermostatic Mixing Valve (Service Kit, Thermostat, O-Ring, & Lip Seal) | P9100E1005 | |
| Thermostatic Mixing Valve (Thermostat) | P9100E1002 | |
| V-Notch Drain Valve | P61E050 | |
| Drain Trap (Pulsar) | LP1512-1 | LP1512-1 |
| Drain Trap (Pulsar) – Annual Replacement Kit | LP1512-30 | LP1512-30 |
| Condensate Drain Muffler | P/N FROM B/M | |
| Oil Regulating Valve | P65S9250 | |
| Vibration Transmitter (LVT,HVT) | KP1955-1 | KP1955-1 |
| Vibration Cable (LVT, HVT) | P7964A4608-00 | P7964A4608-00 |
| Vibration Probe (LVT, HVT) | P7964A4641-00 | P7964A4641-00 |
| Pressure Transmitter (FDT, SDT) | P8650A522 | KP1950-1 |
| Pressure Transmitter (OPT) | P8650A522 | KP1950-1 |
| Pressure Transmitter (DPT) | P8650A521 | KP1950-2 |
| Pressure Transmitter (SPT) | P8650A521 | KP1950-2 |
| Motor Amp Transmitter (MAT) | P/N FROM B/M | P/N FROM B/M |
| Control Relay (CR1) | P7480G7 | NP1874-1 |
| Control Relay (CR2, CR4, CR5) | NP1874-1 | NP1874-1 |
| Control Relay (CR3) | MP1171-1 | MP1171-1 |
| Operator Panel (6″ R150) | NA | MP0202-1 |
| Operator Panel ( 9″ R1000 / 10″ R150) | RP2504-3 | MP0028-1 |
| Micro Memory Card (6″) | NA | MP0923-2 |
| Micro Memory Card (10″) | NA | MP0214-2 |
| CPU Module | NA | KP1971-1 |
| Power Supply ( 24 VDC) | NA | KP1977-1 |
| Power Supply (48 VDC) | P90A106 | P90A106 |
| Analog Input / Output Module | P90ES235 | KP1974-1 |
| Analog Input Module | NA | KP1972-1 |
| RTD Input Module | NA | KP1973-1 |
| Temperature RTD Assembly (IAT) 3-stg | UP1149-30 | LP0445-12 |
| Temperature RTD Assembly (IAT) 2 stg | UP1149-30 | LP0445-12 |
| Temperature RTD Assembly (IOT) | UP1149-30 | LP0445-12 |
| Temperature RTD Assembly (FIT) | UP1149-30 | LP0445-16 |
| Temperature RTD Assembly (ACT) | UP1149-20 | LP0445-50 |
| Seal Air Pressure Switch | P8650A5403 | P8650A811 |
| I/P Transducer, 6-30 PSIG (UVT, IVT) – If supplied inside of control panel | P8651A311 | P8651A311 |
| I/P Transducer, 3-15 PSIG (IGV) – If supplied inside of control panel | P8651A301 | P8651A301 |
| Air Filter Delta P Switch (Optional) | P8335D685 | P8335D685 |
| Oil Filter Delta P Switch (Optional) | P8335E180 | P8335E180 |
| Horn | P8650A65 | NP0837-3 |
| Oil Filter Element (Single) | P3516C160-3 | |
| Oil Filter Element (Duplex) | JP0447-10 | |
| Sealing Compound | X-598-010 | |
| O-Ring Seal Housing | P700D043 | |
| Inlet Air Filter Element – Primary, Standard Ship Loose Filter | LP1068-1 | |
| Inlet Air Filter Element – Secondary, Standard Ship Loose Filter | LP1069-1 | |
| Inlet Air Filter Element: Sound Enclosure Elements | CP0514-50 | |
| Oil Mist Eliminator Filter | P3515A958 | |
| Bullgear Journal Bearing | HP0638-20 | |
| Shim Pack Bull Gear Bearings | JP0940-GR1 | |
| Bullgear Shaft Oil Seal Assembly (Whole) | JP1075-50 | |
| Bullgear Shaft Oil Seal O-Ring (Viton 3.375 Dia x 0.139″) | P700D235 | |
| Pinion Bearing (Active 1st Stg) | PP1586-10 | |
| Pinion Bearing (Active 2nd Stg) | RP0306-10 | |
| Pinion Bearing (Inactive 3rd Stg) | PP1588-10 | |
| Pinion Bearing (Inactive Free End) | PP1589-10 | |
| Pinion Bearing Primary Shim Pkg Kit | CP0008-GR1 | |
| Pinion Bearing Secondary Shim Pkg Kit | CP0007-GR1 | |
| Carbon Seal Assembly (1st Stg) | JP0571-8 | |
| Carbon Seal Assembly (2nd and 3rd Stg) | JP0567-8 | |
| Carbon Seal Repair Kit (1st Stg) | P7963A3100-1 | |
| Carbon Seal Repair Kit (2nd and 3rd Stg) | 254398-GR1 | |
| Shim Pack – Diffuser | JP1133-1 | |
| Shim Pack – Casing | JP1134-1 | |
| Backplate O-Ring | P700D240 | |
| Gearcase Splitline O-Ring | G496-030 | |
| LP / HP Intercooler Bundle Gasket Pkg (4 Pass) | NP1734-900 | |
| LP / HP Intercooler Bundle Gasket Pkg (6 Pass) | NP1736-900 | |
| Aftercooler Bundle Gasket Pkg | RP0551-900 | |
| LP Intercooler Head Gasket | NP1733-1 | |
| HP Intercooler Head Gasket | NP1733-1 | |
| Aftercooler Head Gasket | MP1850-1 | |
| Oil Cooler Gasket Package | JP0448-500 | |
| Inlet Gasket – 1st Stage (10″) | P48W256 | |
| Interstage Pipe Coupling Gasket – 1st Stage Discharge (8″) | P2320C077 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Inlet (8″) | P2320C277 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Discharge (6″) | P2320C075 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Inlet (4-1/2″) | P2320C812 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Discharge (6″) | P2320C075 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Discharge (5″) | P2320C073 | |
| Main Oil Pump | JP0960-1 | |
| Main Oil Pump Repair Kit | JP0960-51 | |
| Auxiliary Oil Pump | P N FROM B M | |
| Oil Cooler (Suitable for water up to 105 deg. F) | JP0448-1 | |
| LP Intercooler Tube Bundle | P N FROM B M | |
| HP Intercooler Tube Bundle | P N FROM B M | |
| Aftercooler Tube Bundle | P N FROM B M | |
| Main Oil Pump Coupling | P2320J096 | |
| Oil Reservoir Heater / LOLS (Optional) | P N FROM B M | |
| Inlet Guide Vane Assembly (w/o actuator) – NOT CE | NP0381-60 | |
| Inlet Guide Vane Assembly (w/o actuator) – CE SHROUD | NP0382-60 | |
| Inlet Guide Vane Electric Actuator – without transformer | NP0325-1 | |
| Inlet Guide Vane Electric Actuator – with transformer | NP0326-1 | |
| 3 in Unloading Valve (w/o actuator) | LP1992-50 | |
| 3 in Unloading Valve (w/o actuator) | LP1992-50 | |
| 4 in Unloading Valve (w/o actuator) | LP2003-50 | |
| 3″ Unloading Valve Actuator – with transformer | NP1472-50 | |
| 3″ Unloading Valve Actuator – with transformer | NP1472-50 | |
| 4″ Unloading Valve Actuator – with transformer | NP1472-50 | |
| Discharge Check Valve | P N FROM B M | |
| Thermostatic Mixing Valve | P9100T126 | |
| Thermostatic Mixing Valve (Service Kit) | P9100T115-1 | |
| Thermostatic Mixing Valve (Element Assy) | P9100T115-2 | |
| V-Notch Drain Valve | P61E050 | |
| Drain Trap (Pulsar) | LP1512-1 | LP1512-1 |
| Drain Trap (Pulsar) – Annual Replacement Kit | LP1512-30 | LP1512-30 |
| Condensate Drain Muffler | P N FROM B M | |
| Oil Regulating Valve | JP0972-1 | |
| Vibration Transmitter (LVT,HVT) | P2557D168-00 | KP1955-1 |
| Vibration Cable (LVT, HVT) | P7964A4623-00 | P7964A4623-00 |
| Vibration Probe (LVT, HVT) | P7964A4641-00 | P7964A4641-00 |
| Pressure Transmitter (OPT, FDT, SDT) | P8650A1010 | KP1950-1 |
| Pressure Transmitter (DPT, SPT) | P8650A1012 | KP1950-2 |
| Motor Amp Transmitter (MAT) | P/N FROM B/M | P/N FROM B/M |
| Control Relay (CR1) | P7480G158 | NP1874-1 |
| Control Relay (CR2, CR4, CR5) | P7480G158 | NP1874-1 |
| Control Relay (CR3) | P7480G158 | MP1171-1 |
| Operator Panel (6″) | MP0202-1 | MP0202-1 |
| Operator Panel (10″) | MP0028-1 | MP0028-1 |
| Micro Memory Card (6″) | MP0923-2 | MP0923-2 |
| Micro Memory Card (10″) | MP0214-2 | MP0214-2 |
| CPU Module | JP0866-1 | KP1971-1 |
| Power Supply | JP0867-1 | KP1977-1 |
| Analog Input / Output Module | NA | KP1974-1 |
| Analog Input Module | JP0873-1 | KP1972-1 |
| RTD Input Module | JP0872-1 | KP1973-1 |
| Temperature RTD/Cable (IAT) | P2557D471 | LP0445-11 |
| Temperature RTD/Cable IOT) | P2557D471 | LP0445-6 |
| Temperature RTD/Cable (FIT) | P2557D452 | LP0445-8 |
| Temperature RTD/Cable (ACT) | P2557D459 | LP0445-50 |
| Seal Air Pressure Switch | P8650A811 | P8650A811 |
| Air Filter Delta P Transmitter (Optional) | P8650A1000 | P8335D685 |
| Oil Filter Delta P Transmitter (Optional) | KP0473-1 | P8335E180 |
| Horn | P6800A103 | NP0837-3 |
| Oil Filter Element (Single) | P3516C160-3 | |
| Oil Filter Element (Duplex) | JP0447-10 | |
| Sealing Compound | X-598-010 | |
| O-Ring, Seal Housing | P700D045 | |
| Inlet Air Filter Element – Primary | LP1068-1 | |
| Inlet Air Filter Element – Secondary | LP1069-1 | |
| Oil Mist Eliminator Filter | P3515A958 | |
| Bullgear Journal Bearing (Pump End) | 260467-10 | |
| Bullgear Journal Bearing (Drive End) | 260467-10 | |
| Shim Pack, Bull Gear Bearings | 232488-GR1 | |
| Bullgear Shaft Oil Seal Assembly (Whole) | KP0707-50 | |
| Bullgear Shaft Oil Seal O-Ring (Viton 4.25 Dia x 1/8) | P700D244 | |
| Pinion Bearing (Active 1st Stg) | PP1590-10 | |
| Pinion Bearing (Active 2nd Stg) | PP1591-10 | |
| Pinion Bearing (Inactive 3rd Stg) | PP1592-10 | |
| Pinion Bearing (Inactive Free End) | PP1593-10 | |
| Pinion Bearing Shim Package Kit | 262898-GR1 | |
| Carbon Seal Assembly (1st Stg) | 254398-8 | |
| Carbon Seal Assembly (2nd and 3rd Stg) | 254398-8 | |
| Carbon Seal Repair Kit (1st Stg) | 254398-Gr1 | |
| Carbon Seal Repair Kit (2nd and 3rd Stg) | 254398-Gr1 | |
| Shim Pack – Diffuser | 262897-1 | |
| Shim Pack – Casing | 262896-1 | |
| Backplate O-Ring | G496-030 | |
| Gearcase Splitline O-Ring | G496-030 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP1085-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1092-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1637-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1748-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP1085-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1092-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1637-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1748-900 | |
| Aftercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP0996-900 | |
| Aftercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1091-900 | |
| Aftercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1714-900 | |
| Aftercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1861-900 | |
| LP Intercooler Head Gasket | MP0538-1 | |
| HP Intercooler Head Gasket | MP0538-1 | |
| Aftercooler Head Gasket | MP0538-1 | |
| Oil Cooler Gasket Package | RP0846-500 | |
| Inlet Gasket – 1st Stage | P48W257 | |
| Interstage Pipe Coupling Gasket – 1st Stage Discharge (8″) | P2320C077 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Inlet (8″) | P2320C277 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Discharge (6″) | P2320C075 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Inlet (8″) | P2320C277 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Inlet (5″) | P2320C273 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Discharge (6″) | P2320C075 | |
| Interstage Pipe Coupling Gasket – AC Inlet (6″) | P2320C075 | |
| Interstage Pipe Coupling Gasket – AC Discharge (5″) | P2320C273 | |
| Main Oil Pump (60 Hz) | P7210T1082 | |
| Main Oil Pump (50 Hz) | P7210T1079 | |
| Main Oil Pump Repair Kit (50 Hz) | P7210T1091-1 | |
| Main Oil Pump Repair Kit (60 Hz) | P7210T1091-1 | |
| Auxiliary Oil Pump (Assembly with Motor) | P/N FROM B/M | |
| Auxiliary Oil Pump (50 HZ) | JP0865-52 | |
| Auxiliary Oil Pump (60 HZ) | JP0864-52 | |
| Oil Cooler (Suitable for water up to 105 deg. F) | P/N FROM B/M | |
| LP Intercooler Tube Bundle | P/N FROM B/M | |
| HP Intercooler Tube Bundle | P/N FROM B/M | |
| Aftercooler Tube Bundle | P/N FROM B/M | |
| Tube Bundle Installation Rails | LP0504-10 | |
| Main Oil Pump Coupling | P2320J293 | |
| Oil Reservoir Heater with integral Low Oil Level Switch | P/N FROM B/M | |
| Inlet Guide Vane Assembly (w/o actuator) – NOT CE | NP0383-50 | |
| Inlet Guide Vane Assembly (w/o actuator) – CE SHROUD | NP0384-50 | |
| Inlet Guide Vane Actuator | P/N FROM B/M | |
| 4″ Unloading Valve w/o actuator | LP2003-50 | |
| Unloading Valve Actuator (4″) | P/N FROM B/M | |
| Discharge Check Valve | P/N FROM B/M | |
| Thermostatic Mixing Valve | P9100E37 | |
| Thermostatic Mixing Valve (Element O-ring) | P9100E902 | |
| Thermostatic Mixing Valve (Element O-ring) | P9100E905 | |
| Thermostatic Mixing Valve (Element Assy) | P9100E904 | |
| V-Notch Drain Valve | P61E050 | |
| Drain Trap (Pulsar) | LP1512-1 | |
| Drain Trap (Pulsar) – Annual Replacement Kit | LP1512-30 | |
| Condensate Drain Muffler | P/N FROM B/M | |
| Oil Regulating Valve | P65S9251 | |
| Vibration Transmitter (LVT,HVT) | KP1955-1 | |
| Vibration Cable (LVT, HVT) | P7964A4608-00 | |
| Vibration Probe (LVT, HVT) | P7964A4641-00 | |
| Pressure Transmitter (FDT) (SDT) | KP1950-1 | |
| Pressure Transmitter (OPT) | KP1950-1 | |
| Pressure Transmitter (DPT) (SPT) | KP1950-2 | |
| Motor Amp Transmitter (MAT) | P/N FROM B/M | |
| Control Relay (CR1) | NP1874-1 | |
| Control Relay (CR2, CR4, CR5) | NP1874-1 | |
| Control Relay (CR3) | MP1171-1 | |
| Operator Panel (6″ R150) | MP0202-1 | |
| Operator Panel (10″ R150 / 9″ R1000) | MP0028-1 | |
| Micro Memory Card (6″) | MP0923-2 | |
| Micro Memory Card (10″) | MP0214-2 | |
| CPU Module | KP1971-1 | |
| Power Supply ( 24 VDC) | KP1977-1 | |
| Power Supply | (48 VDC) | P90A106 |
| Analog Input / Output Module | KP1974-1 | |
| Analog Input Module | KP1972-1 | |
| RTD Input Module | KP1973-1 | |
| Temperature RTD Assembly (IAT) 3-stg | LP0445-11 | |
| Temperature RTD Assembly (IAT) 2 stg | LP0445-14 | |
| Temperature RTD Assembly (IOT) | LP0445-11 | |
| Temperature RTD Assembly (FIT) | LP0445-14 | |
| Temperature RTD Assembly (ACT) | LP0445-50 | |
| Seal Air Pressure Switch | P8650A811 | |
| I/P Transducer, 6-30 PSIG (UVT, IVT) – If supplied inside of control panel | P8651A311 | |
| I/P Transducer, 3-15 PSIG (IGV) – If supplied inside of control panel | P8651A301 | |
| Air Filter Delta P Switch (Optional) | P8335D685 | |
| Oil Filter Delta P Switch (Optional) | P8335E180 | |
| Horn | NP0837-3 | |
| Oil Filter Element (Single) | P3516C160-3 | |
| Oil Filter Element (Duplex) | JP0447-10 | |
| Sealing Compound | X-598-010 | |
| O-Ring, Seal Housing | P700D164 | |
| Inlet Air Filter Element – Primary | LP1068-1 | |
| Inlet Air Filter Element – Secondary | LP1069-1 | |
| Oil Mist Eliminator Filter | P3515A958 | |
| Bullgear Journal Bearing (Pump End) | KP1379-8 | |
| Bullgear Journal Bearing (Drive End) | KP1380-8 | |
| Shim Pack, Bull Gear Bearings | DP0597-Gr1 | |
| Bullgear Shaft Oil Seal Assembly (Whole) | KP0712-50 | |
| Bullgear Shaft Oil Seal O-Ring (Viton 4.75 Dia x 1/8) | P700D248 | |
| Pinion Bearing (Active 1st Stg) | PP1594-10 | |
| Pinion Bearing (Active 2nd Stg) | PP1595-20 | |
| Pinion Bearing (Inactive 3rd Stg) | PP1596-10 | |
| Pinion Bearing (Inactive Free End) | PP1597-10 | |
| Pinion Bearing Shim Package Kit | DP0476-GR1 | |
| Carbon Seal Assembly (1st Stg) | KP0709-8 | |
| Carbon Seal Assembly (2nd and 3rd Stg) | DP1021-8 | |
| Carbon Seal Repair Kit (1st Stg) | KP0709-GR1 | |
| Carbon Seal Repair Kit (2nd and 3rd Stg) | DP1021-GR1 | |
| Shim Pack – Diffuser | DP1119-1 | |
| Shim Pack – Casing | DP1118-1 | |
| Backplate O-Ring | G496-030 | |
| Gearcase Splitline O-Ring | G496-030 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP0994-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1089-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1637-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1748-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP0994-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1089-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1637-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1748-900 | |
| Aftercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP0996-900 | |
| Aftercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1091-900 | |
| Aftercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1714-900 | |
| Aftercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1861-900 | |
| LP Intercooler Head Gasket | MP0538-1 | |
| HP Intercooler Head Gasket | MP0538-1 | |
| Aftercooler Head Gasket | MP0538-1 | |
| Oil Cooler Gasket Package | RP0846-500 | |
| Inlet Gasket – 1st Stage | P48W260 | |
| Interstage Pipe Coupling Gasket – 1st Stage Discharge (12″) | P2320C081 | |
| Interstage Pipe Coupling Gasket – 1st Stage Discharge (10″) | P2320C080 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Inlet (10″) | P2320C280 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Discharge (8″) | P2320C077 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Inlet (8″) | P2320C277 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Discharge (8″) | P2320C077 | |
| Interstage Pipe Coupling Gasket – AC Inlet (6″) | P2320C075 | |
| Interstage Pipe Coupling Gasket – AC Discharge (5″) | P2320C273 | |
| Main Oil Pump (60 Hz) | P7210T1079 | |
| Main Oil Pump (50 Hz) | P7210T1091 | |
| Main Oil Pump Repair Kit (50 Hz) | P7210T1091-1 | |
| Main Oil Pump Repair Kit (60 Hz) | P7210T1091-1 | |
| Auxiliary Oil Pump (Assembly with Motor) | P/N FROM B/M | |
| Auxiliary Oil Pump (50 HZ) | JP0865-52 | |
| Auxiliary Oil Pump (60 HZ) | JP0864-52 | |
| Oil Cooler (Suitable for water up to 105 deg. F) | P/N FROM B/M | |
| LP Intercooler Tube Bundle | P/N FROM B/M | |
| HP Intercooler Tube Bundle | P/N FROM B/M | |
| Aftercooler Tube Bundle | P/N FROM B/M | |
| Tube Bundle Installation Rails | LP0504-10 | |
| Main Oil Pump Coupling | P2320J293 | |
| Oil Reservoir Heater with integral Low Oil Level Switch | P/N FROM B/M | |
| Inlet Guide Vane Assembly (w/o actuator) – NOT CE | RP0324-50 | |
| Inlet Guide Vane Assembly (w/o actuator) – CE SHROUD | RP0470-50 | |
| Inlet Guide Vane Actuator | P/N FROM B/M | |
| 4″ Unloading Valve w/o actuator | LP2003-50 | |
| 6″ Unloading Valve w/o actuator | LP2003-52 | |
| Unloading Valve Actuator (4″ or 6″) | P/N FROM B/M | |
| Discharge Check Valve | P/N FROM B/M | |
| Thermostatic Mixing Valve | P9100E37 | |
| Thermostatic Mixing Valve (Element O-ring) | P9100E902 | |
| Thermostatic Mixing Valve (Teflon Element Lip Seal) | P9100E905 | |
| Thermostatic Mixing Valve (Thermostat) | P9100E904 | |
| V-Notch Drain Valve | P61E052 | |
| Drain Trap (Pulsar) | LP1513-1 | |
| Drain Trap (Pulsar) – Annual Replacement Kit | LP1513-30 | |
| Condensate Drain Muffler | P/N FROM B/M | |
| Oil Regulating Valve | P65S9251 | |
| Vibration Transmitter (LVT,HVT) | KP1955-1 | KP1955-1 |
| Vibration Cable (LVT, HVT) | P7964A4608-00 | P7964A4608-00 |
| Vibration Probe (LVT, HVT) | P7964A4641-00 | P7964A4641-00 |
| Pressure Transmitter (FDT) (SDT) | KP1950-1 | P8650A522 |
| Pressure Transmitter (OPT) | KP1950-1 | P8650A522 |
| Pressure Transmitter (DPT) (SPT) | KP1950-2 | P8650A521 |
| Motor Amp Transmitter (MAT) | P/N FROM B/M | P/N FROM B/M |
| Control Relay (CR1) | NP1874-1 | P7480G7 |
| Control Relay (CR2, CR4, CR5) | NP1874-1 | NP1874-1 |
| Control Relay (CR3) | MP1171-1 | MP1171-1 |
| Operator Panel (6″ R150) | MP0202-1 | NA |
| Operator Panel (10″ R150 / 9″ R1000) | MP0028-1 | RP2504-3 |
| Micro Memory Card (6″) | MP0923-2 | NA |
| Micro Memory Card (10″) | MP0214-2 | NA |
| CPU Module | KP1971-1 | NA |
| Power Supply ( 24 VDC) | KP1977-1 | NA |
| Power Supply (48 VDC) | P90A106 | P90A106 |
| Analog Input / Output Module | KP1974-1 | P90ES235 |
| Analog Input Module | KP1972-1 | NA |
| RTD Input Module | KP1973-1 | NA |
| Temperature RTD Assembly (IAT) 3-stg | LP0445-11 | UP1149-40 |
| Temperature RTD Assembly (IAT) 2 stg | LP0445-14 | UP1149-40 |
| Temperature RTD Assembly (IOT) | LP0445-11 | UP1149-20 |
| Temperature RTD Assembly (FIT) | LP0445-14 | UP1149-40 |
| Temperature RTD Assembly (ACT) | LP0445-50 | UP1149-20 |
| Seal Air Pressure (R150 Switch / R1000 Transmitter) | P8650A811 | P8650A523 |
| I/P Transducer, 6-30 PSIG (UVT, IVT) – If supplied inside of control panel | P8651A311 | P8651A311 |
| I/P Transducer, 3-15 PSIG (IGV) – If supplied inside of control panel | P8651A301 | P8651A301 |
| Air Filter Delta P Switch (Optional) | P8335D685 | P8335D685 |
| Oil Filter Delta P Switch (Optional) | P8335E180 | P8335E180 |
| Horn | NP0837-3 | P8650A65 |
| Oil Filter Element (Single) | P3516C160-3 | |
| Oil Filter Element (Duplex) | JP0447-10 | |
| Sealing Compound | X-598-010 | |
| O-Ring, Seal Housing | P700D045 | |
| Inlet Air Filter Element – Primary | LP1068-1 | |
| Inlet Air Filter Element – Secondary | LP1069-1 | |
| Oil Mist Eliminator Filter | P3515A958 | |
| Bullgear Journal Bearing (Pump End) | 260467-10 | |
| Bullgear Journal Bearing (Drive End) | 260467-10 | |
| Shim Pack, Bull Gear Bearings | 232488-GR1 | |
| Bullgear Shaft Oil Seal Assembly (Whole) | KP0707-50 | |
| Bullgear Shaft Oil Seal O-Ring (Viton 4.25 Dia x 1/8) | P700D244 | |
| Pinion Bearing (Active 1st Stg) | PP1590-10 | |
| Pinion Bearing (Active 2nd Stg) | PP1591-10 | |
| Pinion Bearing (Inactive 3rd Stg) | PP1592-10 | |
| Pinion Bearing (Inactive Free End) | PP1593-10 | |
| Pinion Bearing Shim Package Kit | 262898-GR1 | |
| Carbon Seal Assembly (1st Stg) | 254398-8 | |
| Carbon Seal Assembly (2nd and 3rd Stg) | 254398-8 | |
| Carbon Seal Repair Kit (1st Stg) | 254398-Gr1 | |
| Carbon Seal Repair Kit (2nd and 3rd Stg) | 254398-Gr1 | |
| Shim Pack – Diffuser | 262897-1 | |
| Shim Pack – Casing | 262896-1 | |
| Backplate O-Ring | G496-030 | |
| Gearcase Splitline O-Ring | G496-030 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP1085-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1092-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1637-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1748-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP1085-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1092-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1637-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1748-900 | |
| Aftercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP0996-900 | |
| Aftercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1091-900 | |
| Aftercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1714-900 | |
| Aftercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1861-900 | |
| LP Intercooler Head Gasket | MP0538-1 | |
| HP Intercooler Head Gasket | MP0538-1 | |
| Aftercooler Head Gasket | MP0538-1 | |
| Oil Cooler Gasket Package | RP0846-500 | |
| Inlet Gasket – 1st Stage | P48W257 | |
| Interstage Pipe Coupling Gasket – 1st Stage Discharge (8″) | P2320C077 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Inlet (8″) | P2320C277 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Discharge (6″) | P2320C075 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Inlet (8″) | P2320C277 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Inlet (5″) | P2320C273 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Discharge (6″) | P2320C075 | |
| Interstage Pipe Coupling Gasket – AC Inlet (6″) | P2320C075 | |
| Interstage Pipe Coupling Gasket – AC Discharge (5″) | P2320C273 | |
| Main Oil Pump (60 Hz) | P7210T1082 | |
| Main Oil Pump (50 Hz) | P7210T1079 | |
| Main Oil Pump Repair Kit (50 Hz) | P7210T1091-1 | |
| Main Oil Pump Repair Kit (60 Hz) | P7210T1091-1 | |
| Auxiliary Oil Pump (Assembly with Motor) | P/N FROM B/M | |
| Auxiliary Oil Pump (50 HZ) | JP0865-52 | |
| Auxiliary Oil Pump (60 HZ) | JP0864-52 | |
| Oil Cooler (Suitable for water up to 105 deg. F) | P/N FROM B/M | |
| LP Intercooler Tube Bundle | P/N FROM B/M | |
| HP Intercooler Tube Bundle | P/N FROM B/M | |
| Aftercooler Tube Bundle | P/N FROM B/M | |
| Tube Bundle Installation Rails | LP0504-10 | |
| Main Oil Pump Coupling | P2320J293 | |
| Oil Reservoir Heater with integral Low Oil Level Switch | P/N FROM B/M | |
| Inlet Guide Vane Assembly (w/o actuator) – NOT CE | NP0383-50 | |
| Inlet Guide Vane Assembly (w/o actuator) – CE SHROUD | NP0384-50 | |
| Inlet Guide Vane Actuator | P/N FROM B/M | |
| 4″ Unloading Valve w/o actuator | LP2003-50 | |
| Unloading Valve Actuator (4″) | P/N FROM B/M | |
| Discharge Check Valve | P/N FROM B/M | |
| Thermostatic Mixing Valve | P9100E37 | |
| Thermostatic Mixing Valve (Element O-ring) | P9100E902 | |
| Thermostatic Mixing Valve (Element O-ring) | P9100E905 | |
| Thermostatic Mixing Valve (Element Assy) | P9100E904 | |
| V-Notch Drain Valve | P61E050 | |
| Drain Trap (Pulsar) | LP1512-1 | |
| Drain Trap (Pulsar) – Annual Replacement Kit | LP1512-30 | |
| Condensate Drain Muffler | P/N FROM B/M | |
| Oil Regulating Valve | P65S9251 | |
| Vibration Transmitter (LVT,HVT) | KP1955-1 | |
| Vibration Cable (LVT, HVT) | P7964A4608-00 | |
| Vibration Probe (LVT, HVT) | P7964A4641-00 | |
| Pressure Transmitter (FDT) (SDT) | KP1950-1 | |
| Pressure Transmitter (OPT) | KP1950-1 | |
| Pressure Transmitter (DPT) (SPT) | KP1950-2 | |
| Motor Amp Transmitter (MAT) | P/N FROM B/M | |
| Control Relay (CR1) | NP1874-1 | |
| Control Relay (CR2, CR4, CR5) | NP1874-1 | |
| Control Relay (CR3) | MP1171-1 | |
| Operator Panel (6″ R150) | MP0202-1 | |
| Operator Panel (10″ R150 / 9″ R1000) | MP0028-1 | |
| Micro Memory Card (6″) | MP0923-2 | |
| Micro Memory Card (10″) | MP0214-2 | |
| CPU Module | KP1971-1 | |
| Power Supply ( 24 VDC) | KP1977-1 | |
| Power Supply | (48 VDC) | P90A106 |
| Analog Input / Output Module | KP1974-1 | |
| Analog Input Module | KP1972-1 | |
| RTD Input Module | KP1973-1 | |
| Temperature RTD Assembly (IAT) 3-stg | LP0445-11 | |
| Temperature RTD Assembly (IAT) 2 stg | LP0445-14 | |
| Temperature RTD Assembly (IOT) | LP0445-11 | |
| Temperature RTD Assembly (FIT) | LP0445-14 | |
| Temperature RTD Assembly (ACT) | LP0445-50 | |
| Seal Air Pressure Switch | P8650A811 | |
| I/P Transducer, 6-30 PSIG (UVT, IVT) – If supplied inside of control panel | P8651A311 | |
| I/P Transducer, 3-15 PSIG (IGV) – If supplied inside of control panel | P8651A301 | |
| Air Filter Delta P Switch (Optional) | P8335D685 | |
| Oil Filter Delta P Switch (Optional) | P8335E180 | |
| Horn | NP0837-3 | |
| Oil Filter Element (Single) | P3516C160-3 | |
| Oil Filter Element (Duplex) | JP0447-10 | |
| Sealing Compound | X-598-010 | |
| O-Ring, Seal Housing | P700D164 | |
| Inlet Air Filter Element – Primary | LP1068-1 | |
| Inlet Air Filter Element – Secondary | LP1069-1 | |
| Oil Mist Eliminator Filter | P3515A958 | |
| Bullgear Journal Bearing (Pump End) | KP1379-8 | |
| Bullgear Journal Bearing (Drive End) | KP1380-8 | |
| Shim Pack, Bull Gear Bearings | DP0597-Gr1 | |
| Bullgear Shaft Oil Seal Assembly (Whole) | KP0712-50 | |
| Bullgear Shaft Oil Seal O-Ring (Viton 4.75 Dia x 1/8) | P700D248 | |
| Pinion Bearing (Active 1st Stg) | PP1594-10 | |
| Pinion Bearing (Active 2nd Stg) | PP1595-20 | |
| Pinion Bearing (Inactive 3rd Stg) | PP1596-10 | |
| Pinion Bearing (Inactive Free End) | PP1597-10 | |
| Pinion Bearing Shim Package Kit | DP0476-GR1 | |
| Carbon Seal Assembly (1st Stg) | KP0709-8 | |
| Carbon Seal Assembly (2nd and 3rd Stg) | DP1021-8 | |
| Carbon Seal Repair Kit (1st Stg) | KP0709-GR1 | |
| Carbon Seal Repair Kit (2nd and 3rd Stg) | DP1021-GR1 | |
| Shim Pack – Diffuser | DP1119-1 | |
| Shim Pack – Casing | DP1118-1 | |
| Backplate O-Ring | G496-030 | |
| Gearcase Splitline O-Ring | G496-030 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP0994-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1089-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1637-900 | |
| Low Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1748-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP0994-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1089-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1637-900 | |
| High Pressure Intercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1748-900 | |
| Aftercooler Bundle Gasket Pkg – (2 Pass, 3/8″ OD Tubes) | QP0996-900 | |
| Aftercooler Bundle Gasket Pkg – (4 Pass, 3/8″ OD Tubes) | QP1091-900 | |
| Aftercooler Bundle Gasket Pkg – (2 Pass, 5/8″ OD Tubes) | RP1714-900 | |
| Aftercooler Bundle Gasket Pkg – (4 Pass, 5/8″ OD Tubes) | RP1861-900 | |
| LP Intercooler Head Gasket | MP0538-1 | |
| HP Intercooler Head Gasket | MP0538-1 | |
| Aftercooler Head Gasket | MP0538-1 | |
| Oil Cooler Gasket Package | RP0846-500 | |
| Inlet Gasket – 1st Stage | P48W260 | |
| Interstage Pipe Coupling Gasket – 1st Stage Discharge (12″) | P2320C081 | |
| Interstage Pipe Coupling Gasket – 1st Stage Discharge (10″) | P2320C080 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Inlet (10″) | P2320C280 | |
| Interstage Pipe Coupling Gasket – 2nd Stage Discharge (8″) | P2320C077 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Inlet (8″) | P2320C277 | |
| Interstage Pipe Coupling Gasket – 3rd Stage Discharge (8″) | P2320C077 | |
| Interstage Pipe Coupling Gasket – AC Inlet (6″) | P2320C075 | |
| Interstage Pipe Coupling Gasket – AC Discharge (5″) | P2320C273 | |
| Main Oil Pump (60 Hz) | P7210T1079 | |
| Main Oil Pump (50 Hz) | P7210T1091 | |
| Main Oil Pump Repair Kit (50 Hz) | P7210T1091-1 | |
| Main Oil Pump Repair Kit (60 Hz) | P7210T1091-1 | |
| Auxiliary Oil Pump (Assembly with Motor) | P/N FROM B/M | |
| Auxiliary Oil Pump (50 HZ) | JP0865-52 | |
| Auxiliary Oil Pump (60 HZ) | JP0864-52 | |
| Oil Cooler (Suitable for water up to 105 deg. F) | P/N FROM B/M | |
| LP Intercooler Tube Bundle | P/N FROM B/M | |
| HP Intercooler Tube Bundle | P/N FROM B/M | |
| Aftercooler Tube Bundle | P/N FROM B/M | |
| Tube Bundle Installation Rails | LP0504-10 | |
| Main Oil Pump Coupling | P2320J293 | |
| Oil Reservoir Heater with integral Low Oil Level Switch | P/N FROM B/M | |
| Inlet Guide Vane Assembly (w/o actuator) – NOT CE | RP0324-50 | |
| Inlet Guide Vane Assembly (w/o actuator) – CE SHROUD | RP0470-50 | |
| Inlet Guide Vane Actuator | P/N FROM B/M | |
| 4″ Unloading Valve w/o actuator | LP2003-50 | |
| 6″ Unloading Valve w/o actuator | LP2003-52 | |
| Unloading Valve Actuator (4″ or 6″) | P/N FROM B/M | |
| Discharge Check Valve | P/N FROM B/M | |
| Thermostatic Mixing Valve | P9100E37 | |
| Thermostatic Mixing Valve (Element O-ring) | P9100E902 | |
| Thermostatic Mixing Valve (Teflon Element Lip Seal) | P9100E905 | |
| Thermostatic Mixing Valve (Thermostat) | P9100E904 | |
| V-Notch Drain Valve | P61E052 | |
| Drain Trap (Pulsar) | LP1513-1 | |
| Drain Trap (Pulsar) – Annual Replacement Kit | LP1513-30 | |
| Condensate Drain Muffler | P/N FROM B/M | |
| Oil Regulating Valve | P65S9251 | |
| Vibration Transmitter (LVT,HVT) | KP1955-1 | KP1955-1 |
| Vibration Cable (LVT, HVT) | P7964A4608-00 | P7964A4608-00 |
| Vibration Probe (LVT, HVT) | P7964A4641-00 | P7964A4641-00 |
| Pressure Transmitter (FDT) (SDT) | KP1950-1 | P8650A522 |
| Pressure Transmitter (OPT) | KP1950-1 | P8650A522 |
| Pressure Transmitter (DPT) (SPT) | KP1950-2 | P8650A521 |
| Motor Amp Transmitter (MAT) | P/N FROM B/M | P/N FROM B/M |
| Control Relay (CR1) | NP1874-1 | P7480G7 |
| Control Relay (CR2, CR4, CR5) | NP1874-1 | NP1874-1 |
| Control Relay (CR3) | MP1171-1 | MP1171-1 |
| Operator Panel (6″ R150) | MP0202-1 | NA |
| Operator Panel (10″ R150 / 9″ R1000) | MP0028-1 | RP2504-3 |
| Micro Memory Card (6″) | MP0923-2 | NA |
| Micro Memory Card (10″) | MP0214-2 | NA |
| CPU Module | KP1971-1 | NA |
| Power Supply ( 24 VDC) | KP1977-1 | NA |
| Power Supply (48 VDC) | P90A106 | P90A106 |
| Analog Input / Output Module | KP1974-1 | P90ES235 |
| Analog Input Module | KP1972-1 | NA |
| RTD Input Module | KP1973-1 | NA |
| Temperature RTD Assembly (IAT) 3-stg | LP0445-11 | UP1149-40 |
| Temperature RTD Assembly (IAT) 2 stg | LP0445-14 | UP1149-40 |
| Temperature RTD Assembly (IOT) | LP0445-11 | UP1149-20 |
| Temperature RTD Assembly (FIT) | LP0445-14 | UP1149-40 |
| Temperature RTD Assembly (ACT) | LP0445-50 | UP1149-20 |
| Seal Air Pressure (R150 Switch / R1000 Transmitter) | P8650A811 | P8650A523 |
| I/P Transducer, 6-30 PSIG (UVT, IVT) – If supplied inside of control panel | P8651A311 | P8651A311 |
| I/P Transducer, 3-15 PSIG (IGV) – If supplied inside of control panel | P8651A301 | P8651A301 |
| Air Filter Delta P Switch (Optional) | P8335D685 | P8335D685 |
| Oil Filter Delta P Switch (Optional) | P8335E180 | P8335E180 |
| Horn | NP0837-3 | P8650A65 |
